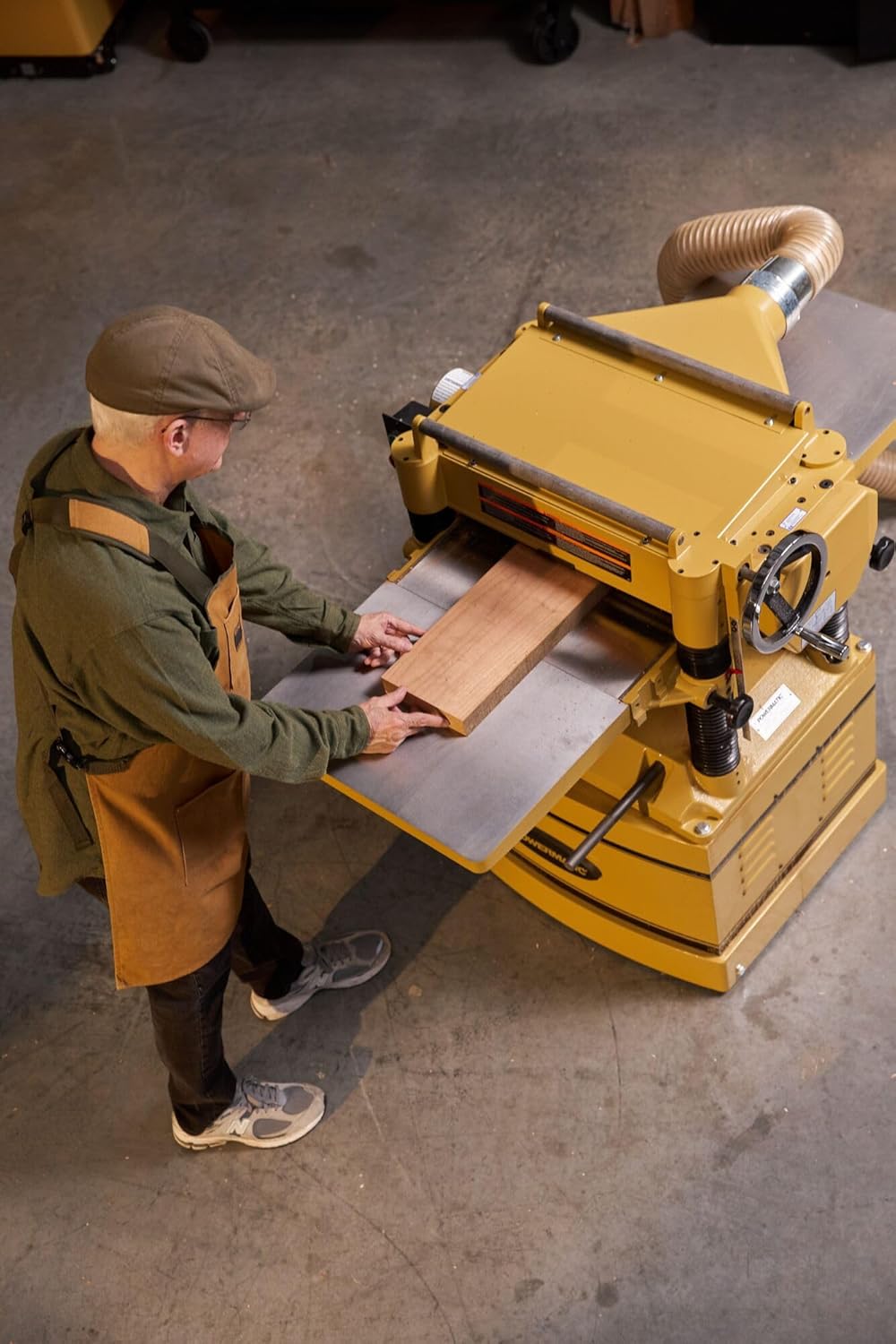

Powermatic 20-Inch Planer, Helical Cutterhead, 5 HP, 460V 3Ph (209HH-3)

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5-HP motor and 20-inch planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5-inch dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

• Helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting
• Fast speed changes at 24 and 31 FPM (and gearbox can be changed to run at lower speeds of 16 and 20 FPM)
• Cast iron table with extensions creates a big 55.5" x 20" working area
• Chip breaker and pressure bar helps to reduce snipe
• Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" max. depth of cut and 8" max. planing thickness
• Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
• Integrated locking casters and pull-out lifting rods provide easy shop mobility
